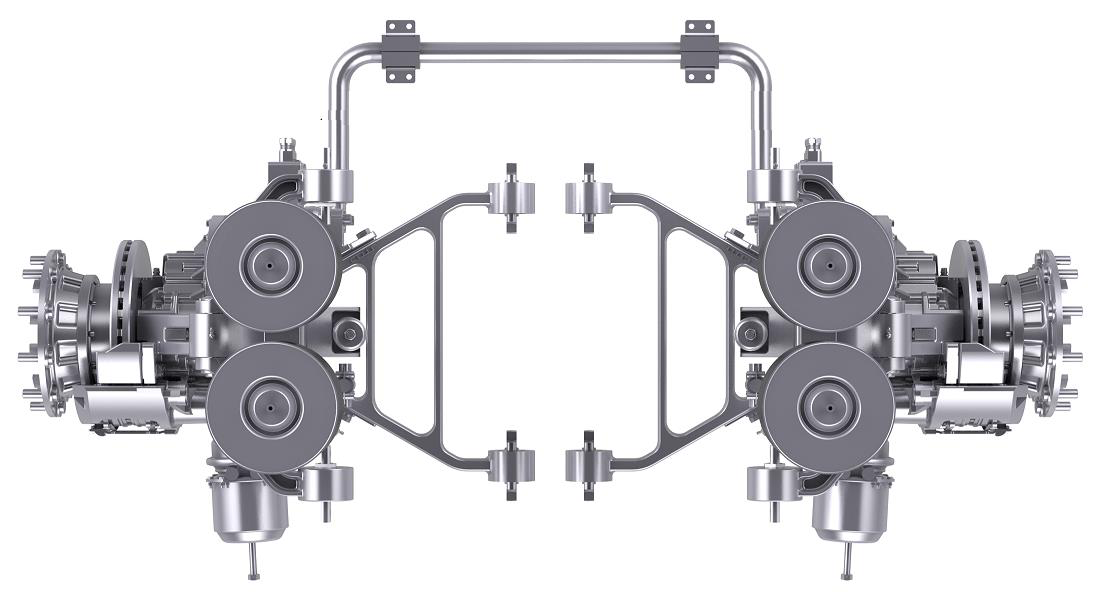

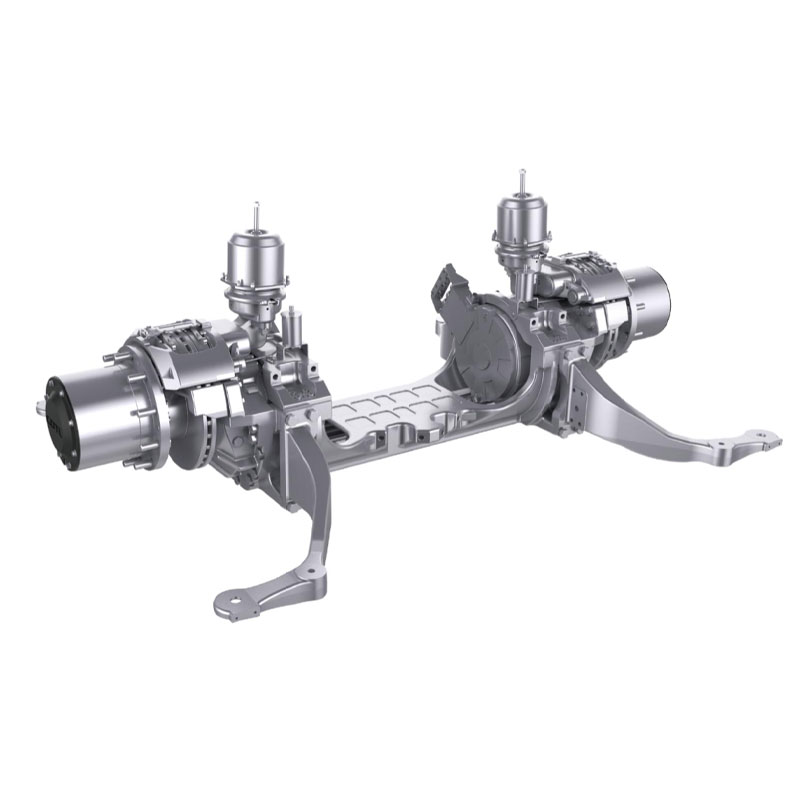

2*120kW Electric Rear Axle 2*6142 N.m Rigid Portal Axle for 8-9m City Bus
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Parameters
| Item | Axle weight | Rated axle load | Wheel speed (max) | Tire size | Rim size | Brake | Gear ratio |
| Unit | KG | KG | r/min | - | inch | - | - |
| Parameters | 850 | 9000 | 540 | 275/70R22.5 | 22.5 | Air disc brake | 17.55 |
Other Models
|
Types
|
Load Capacity(kg )
|
Motor rated /peak power(kw)
|
Motor rated/peak torque(N.m)
|
Gear ratio
|
System weight
|
Motor peak speed(rpm )
|
|
5t axle
|
5000
|
2x37/2x74
|
2x126/2x382
|
10.63
|
550kg
|
10000
|
|
9t axle
|
9000
|
2x60/2x120
|
2x145/2x400
|
17.55
|
850kg
|
9500
|
|
13t axle
|
13000
|
2x80/2x160
|
2x220/2x580
|
18.58
|
1080kg
|
8000
|
