Simple structure
Light weight and Less Volume，can save the Space for Installation, Solid and reliable installation
High Efficiency
Reliable operation, strong overload capability, low current.
Low Cost
Low energy consumption (The assembly noise is not higher than 72dB)

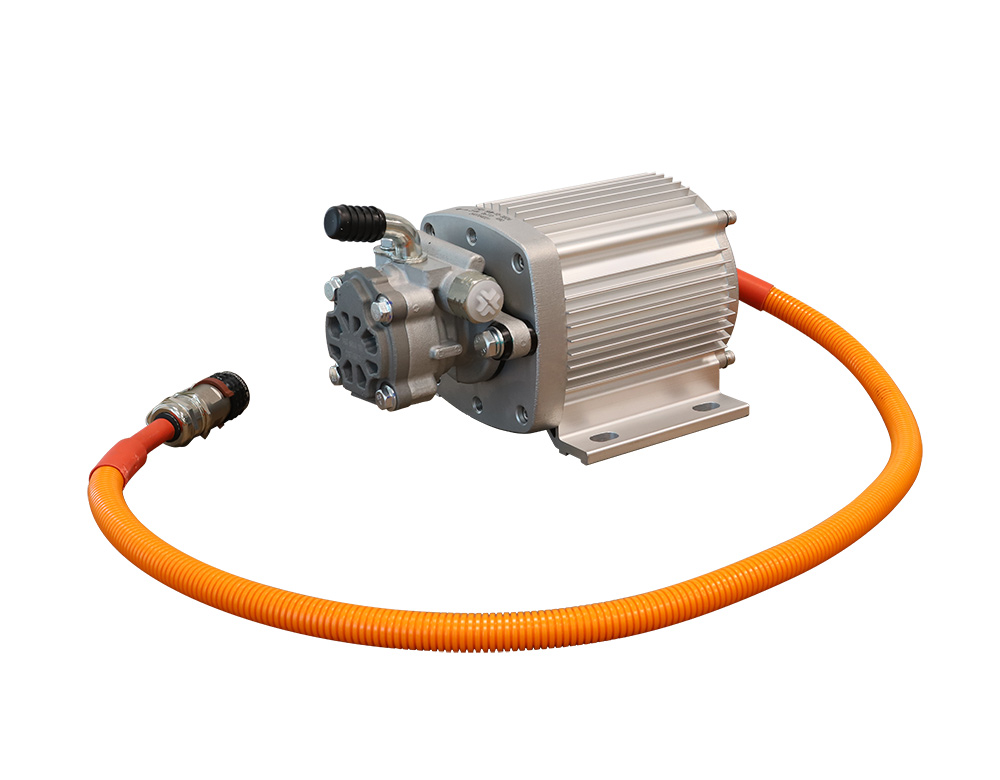

3.0 Kw 380VAC/220VAC，15Mpa, flow 17L± 1.5L/min
|
Performance parameters of permanent magnet synchronous motor |
|||
|
Rated Power |
3 KW |
Peak Power |
6 KW |
|
Rated Voltage |
AC380V |
Back EMF (Rated Speed) |
217V |
|
Rated Current |
7.5A |
Peak current |
15A |
|
Rated torque |
19 N.m |
Peak torque |
38 N.m |
|
Rated Speed |
1500r/min |
Working speed |
1200 r/min |
|
Displacement |
14ml/r |
Working frequency |
80 Hz |
|
Insulation class |
H |
Protection class |
IP67 |
|
Rated efficiency |
92% |
Pole pairs |
4 |
|
Line resistance (20°C) |
0.165 Ω |
Q-axis inductance |
7.3mH |
|
Phase resistance (20°C) |
0.082Ω |
D-axis inductance |
7.3mH |
|
Motor rotation direction (viewed from the shaft end) |
Counterclockwise (left-handed) |
Cooling method |
Free cooling |
|
No-load noise |
«72dB(1M) |
Working temperature |
-40°C to 80 °C |
