Simple structure
Light weight and Less Volume，can save the Space for Installation, Solid and reliable installation
High Efficiency
Reliable operation, strong overload capability, low current.
Low Cost
Low energy consumption (The assembly noise is not higher than 72dB)

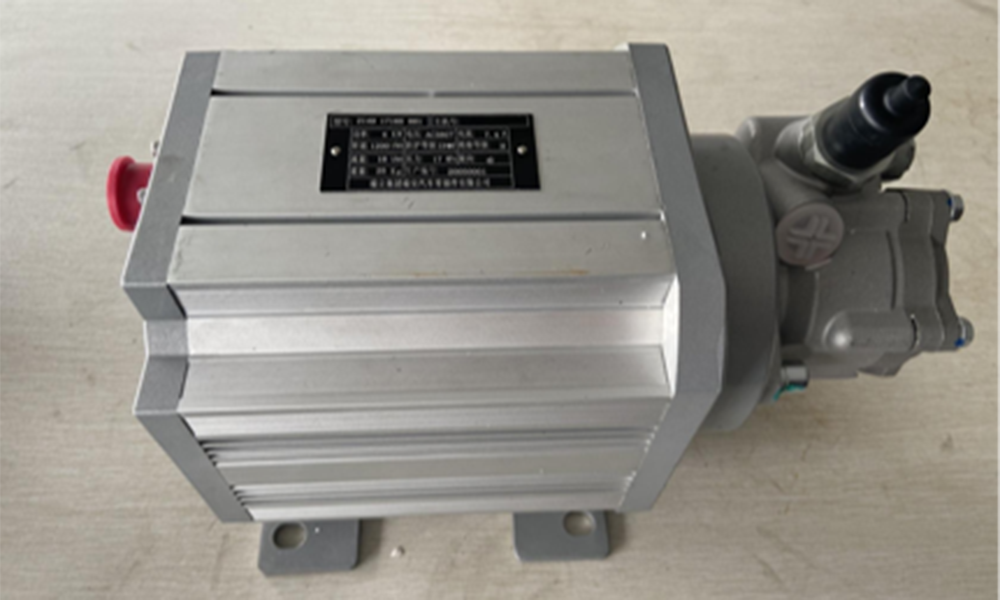

5.5 KW 380VAC,17 +0.5Mpa, flow 28L/min
|
Performance parameters of permanent magnet synchronous motor |
|||
|
Rated Power |
5.5 KW |
Peak Power |
11KW |
|
Rated Voltage |
AC380V |
Back EMF (Rated Speed) |
181V/krpm |
|
Rated Current |
12A |
Peak current |
24A |
|
Rated torque |
35 N.m |
Peak torque |
70 N.m |
|
Rated Speed |
1500r/min |
Working speed |
1200 r/min |
