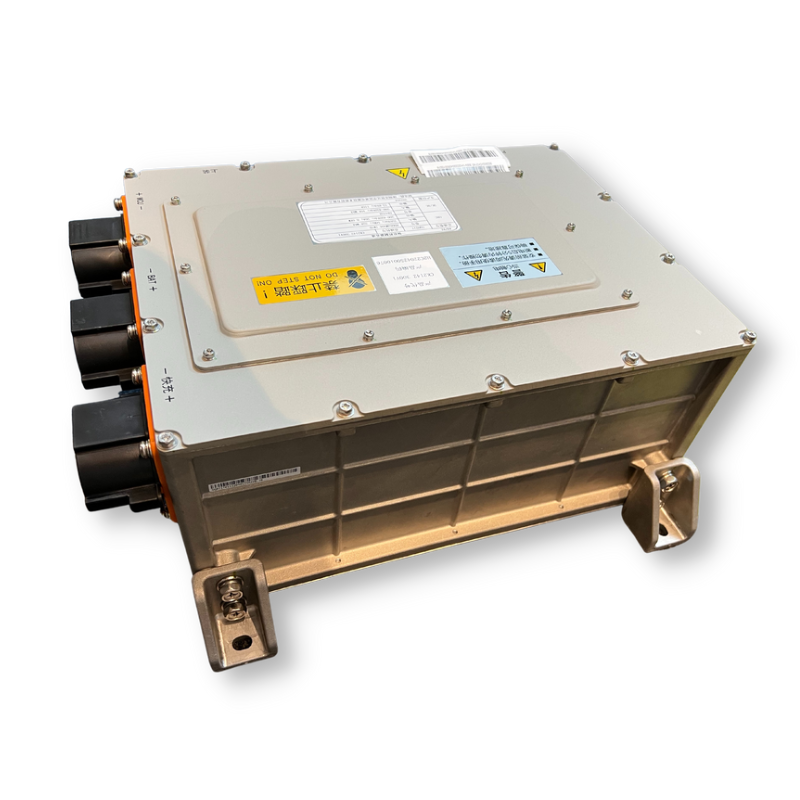

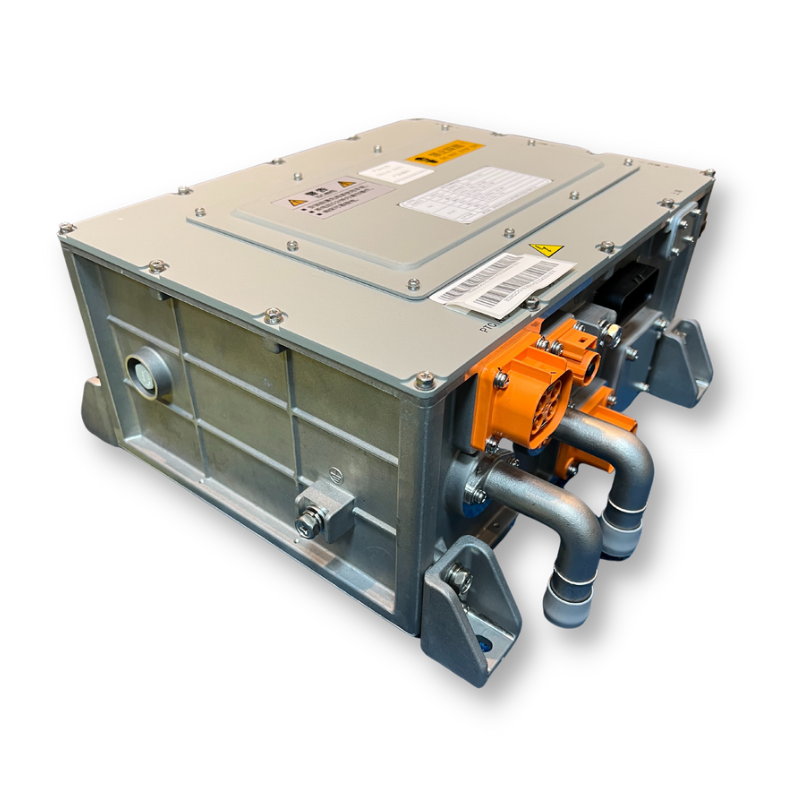

V2L V2V 11kw EV 3 in 1 OBC 2.5KW DCDC Charger and PDU
11KW OBC +2.5KW DCDC+PDU
This product integrates OBC, DC-DC module, and PDU unit, with an OBC output of 11KW and a DC-DC output of 2KW(peak value of 2.5KW). It adopts water cooling and heat dissipation and meets THE requirements of IP67 grade. The product has a small volume, high efficiency, stable operation, CAN bus communication, and real-time voltage and current setting. With input overvoltage and undervoltage protection, output overcurrent protection, output overvoltage protection, output short circuit protection, over temperature protection, and other functions.
|
11kw OBC
|
|||
|
Structure size and weight
|
Dimensions: 400mm×255mm×168mm(excluding connector)
Machine weight: 25KG
OBC module efficiency: 94% DC-DC module efficiency: 93%
|
||
|
AC input
|
High voltage output
|
||
|
Input voltage range
|
Three phase 360-440 vac/ Single phase 200-260 vac
|
Output voltage range
|
310-400VDC
|
|
Current
|
0-30A
|
Current
|
0-16A
|
|
2.5kw DCDC
|
|||
|
High voltage input
|
Low voltage output
|
||
|
Input voltage range
|
240-450VDC
|
Output voltage range
|
13.8Vdc
|
|
Output current
|
0-145A
|
Output power
|
2.5 kW
|
