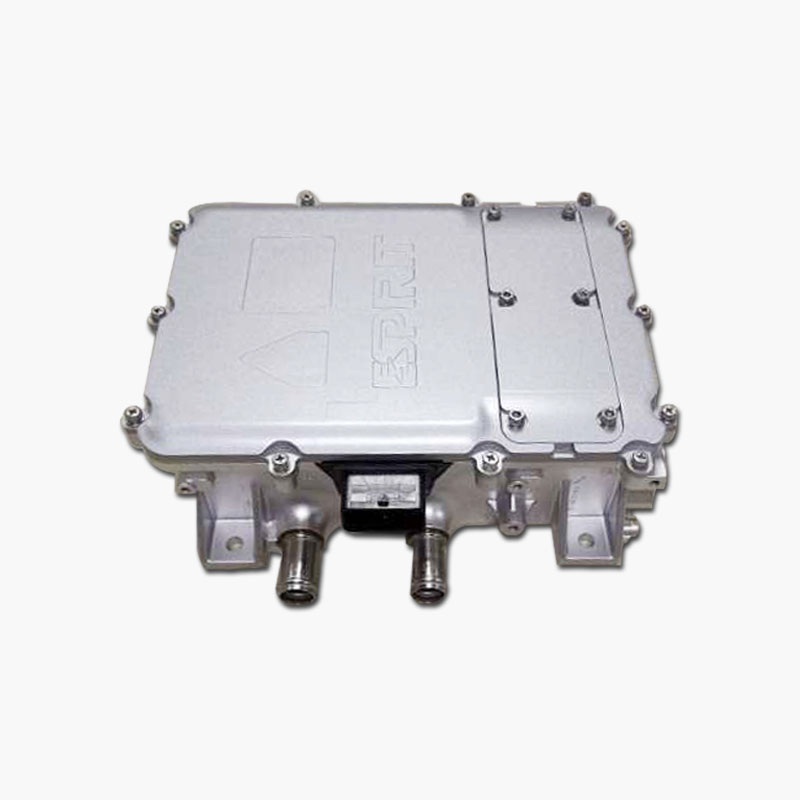

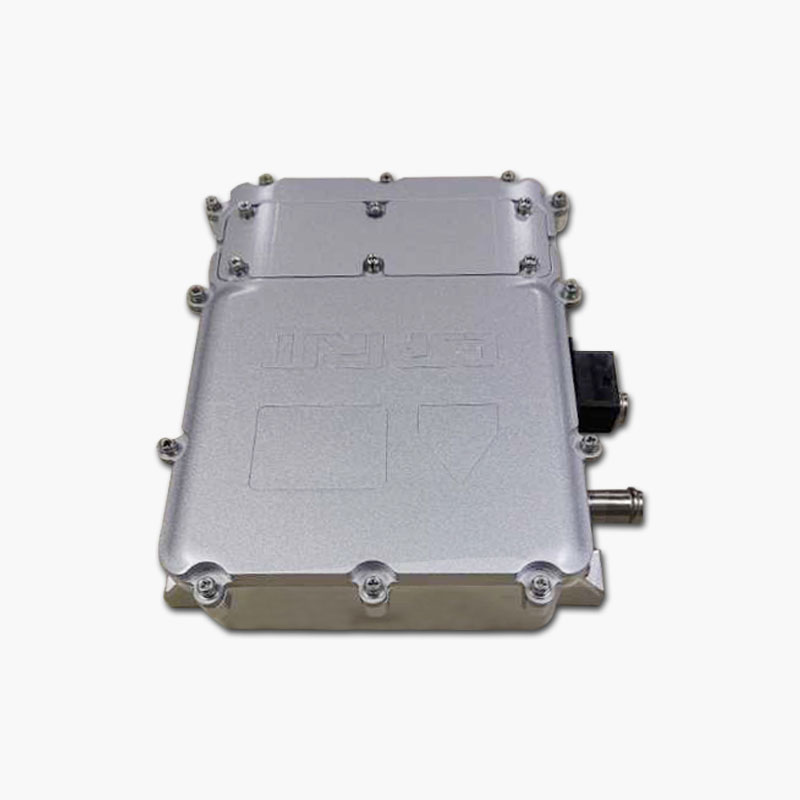

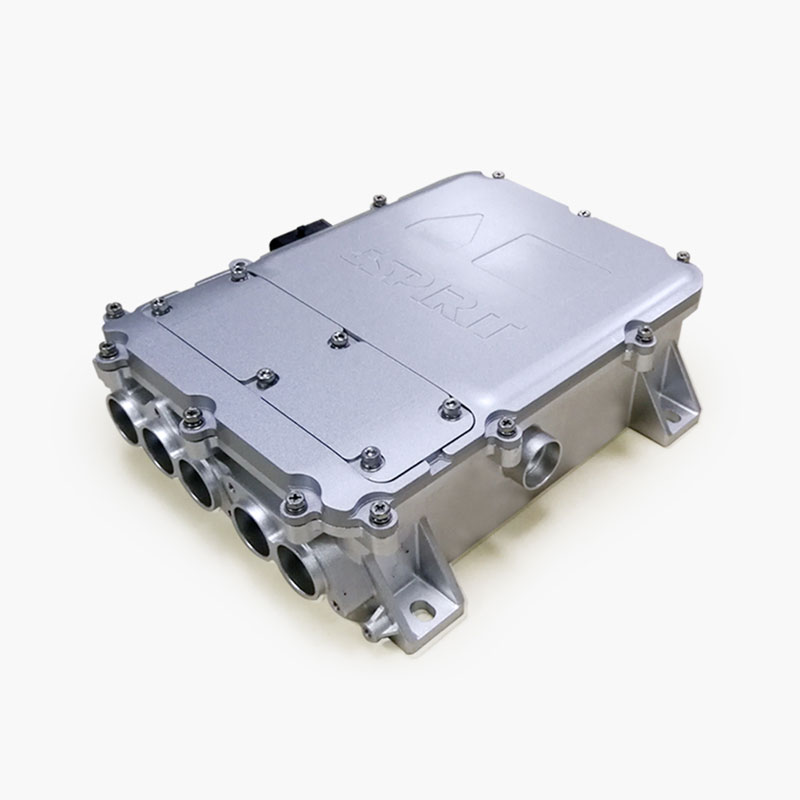

336V High Voltage EV PMSM Motor Controller
1. High power density: the maximum power density reaches 25kW/L;
2. High precision control: fast and accurate torque control and speed control;
3. High-reliability automotive-grade IGBT power module;
4. IGBT gate-level driver with integrated protection function;
5. Safe and reliable fault detection and handling measures;
6. Architectural design that meets ISO26262 functional safety requirements;
7. Use IC-CPLD to realize DSP+CPLD fast protection processing;
8. The water channel adopts friction welding technology to improve the reliability of the water channel sealing.
|
Model
|
KTZ34X22SI30YSPL
|
KTZ34X30SI30YSPL
|
KTZ34X40SI30YSPL
|
KTZ54X22SI30YSPL
|
KTZ54X34SI30YSPL
|
|
Rated input voltage(V)
|
336
|
336
|
336
|
540
|
540
|
|
Input voltage range(V)
|
200-450
|
200-450
|
200-450
|
400-750
|
400-750
|
|
Feeding voltage range(V)
|
200-450
|
200-450
|
200-450
|
400-750
|
400-750
|
|
Rated output current(A)
|
110
|
150
|
200
|
110
|
170
|
|
rated power(kw)
|
30
|
40
|
55
|
50
|
60
|
|
Stall current(A)
|
220
|
300
|
400
|
220
|
340
|
|
Maximum working current of controller(A）
|
220
|
300
|
400
|
220
|
340
|
