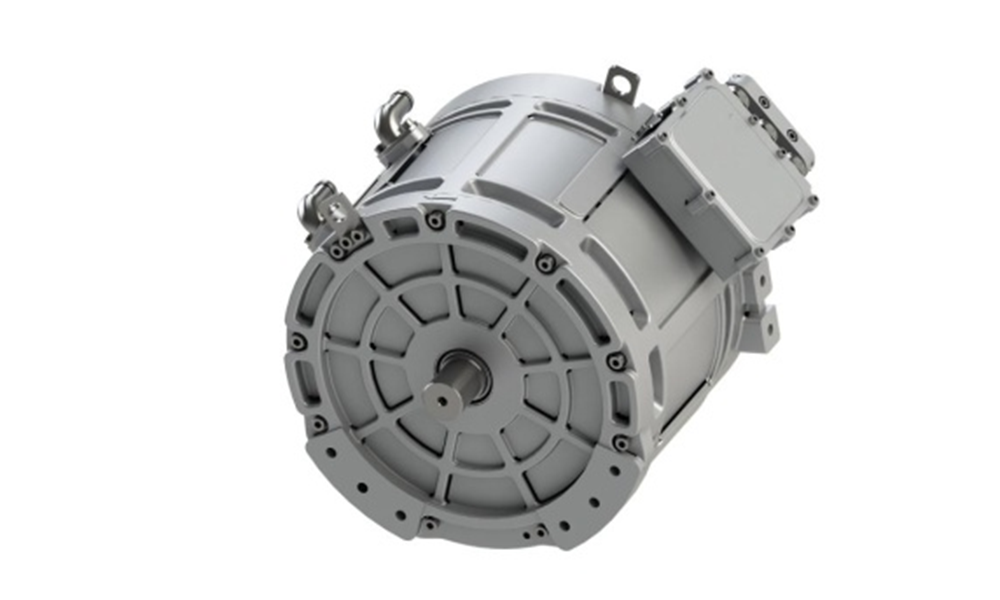

Product name |
motor |
motor model |
EG80-D2 |
|
|
Motor type |
Permanent magnet synchronization |
work schedule |
S9 |
|
|
Rated Voltage (VDC) |
336 |
Protection class |
IP67 |
|
|
Rated power (kW) |
45 |
Peak power (kW) |
90 |
|
|
Rated torque (N.m) |
150 |
Peak torque (N.m) |
360 |
|
|
Rated speed (rpm) |
2850 |
Maximum speed (rpm) |
8000 |
|
|
Insulation class |
H |
Water Flow (LPM) |
≥16 |
|
|
Dimensions (mm) |
Φ276*276 |
Weight (kg) |
50 |
|

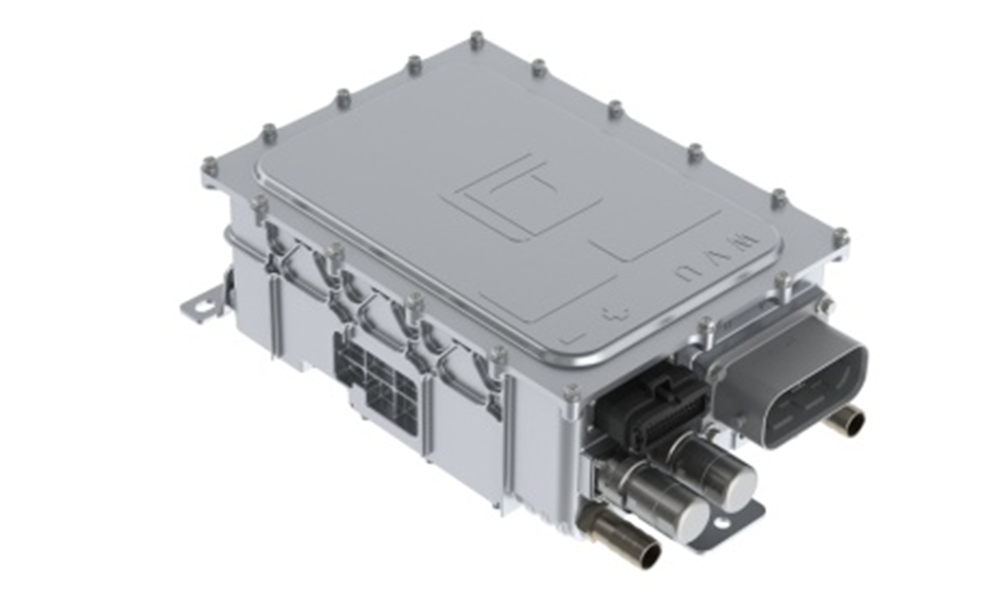

Product name |
motor controller |
motor controller model |
EG80-K2 |
|
|
Rated input voltage |
360 |
Operating voltage range |
250~420 |
|
|
Working ambient temperature (℃) |
-40~85 |
Water Flow (LPM) |
≥16 |
|
|
Continuous working current |
180 |
short-time working current |
370 |
|
|
cooling method |
Water cooling |
Protection class |
IP67 |
|
|
Dimensions (mm) |
330*240*130 |
Weight (kg) |
8 |
