60/100kw 540V 700Nm PMSM Motor Drive System
|
Product name |
motor |
motor model |
EC90-D4 |
|
|
Motor type |
Permanent magnet synchronization |
work schedule |
S9 |
|
|
Rated Voltage (VDC) |
540 |
Protection class |
IP67 |
|
|
Rated power (kW) |
60 |
Peak power (kW) |
100 |
|
|
Rated torque (N.m) |
350 |
Peak torque (N.m) |
700 |
|
|
Rated speed (rpm) |
1640 |
Maximum speed (rpm) |
3800 |
|
|
Insulation class |
H |
Water Flow (LPM) |
≥16 |
|
|
Dimensions (mm) |
Φ350×270 |
Weight (kg) |
95 |
|

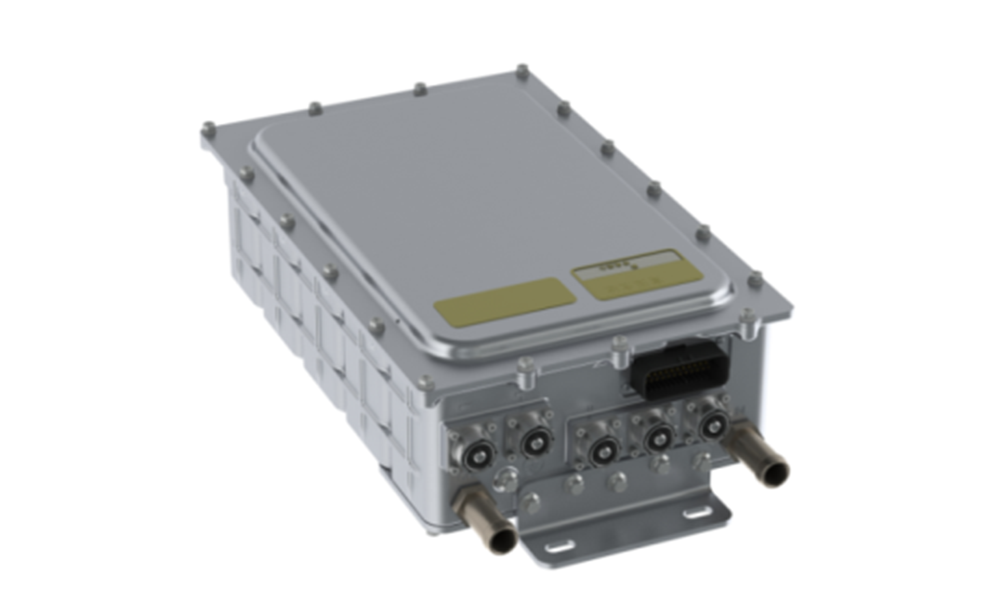

Product name |
motor controller |
motor controller model |
EB110-KB |
|
|
Rated input voltage |
540 |
Operating voltage range |
350~700 |
|
|
Working ambient temperature (℃) |
-40~85 |
Water Flow (LPM) |
≥16 |
|
|
Continuous working current |
170 |
short-time working current |
320 |
|
|
cooling method |
Water cooling |
Protection class |
IP67 |
|
|
Dimensions (mm) |
457*255*138 |
Weight (kg) |
14 |
